Diagrams of the supports, walls and floor of my treehouse
Each section of the treehouse is marked in a different shade, indicating the original section, first extension and second extension.
![3D view of the different sections](images/mytreehousediagrams/3dfloor.gif)

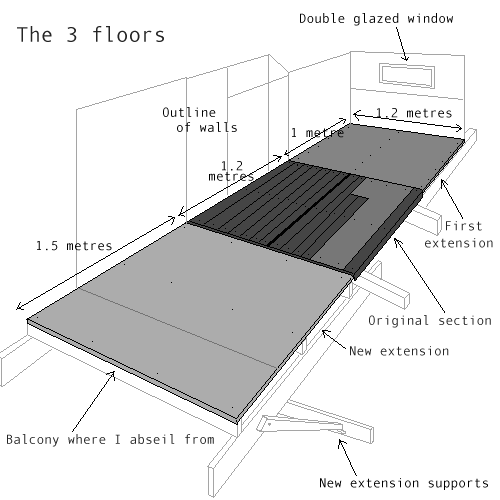

3D view
![East wall](images/mytreehousediagrams/eastwall.gif)

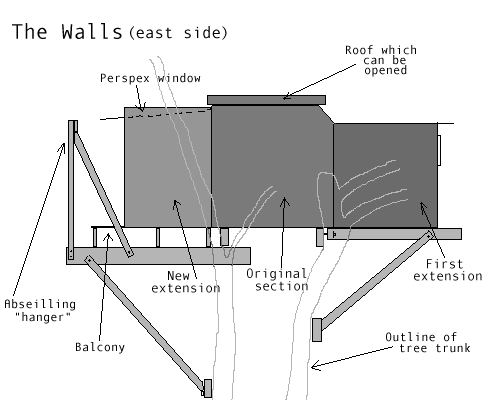

East wall
![Plan view of roof](images/mytreehousediagrams/roof.gif)

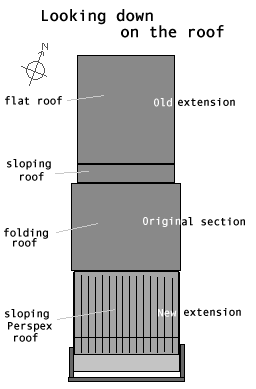

Plan view of roof
![X-ray view through floor](images/mytreehousediagrams/xrayfloor.gif)

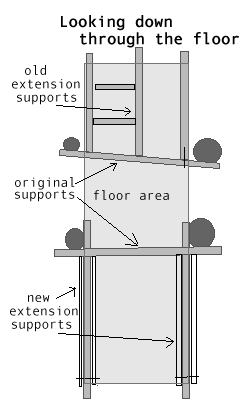

X-ray view through floor
